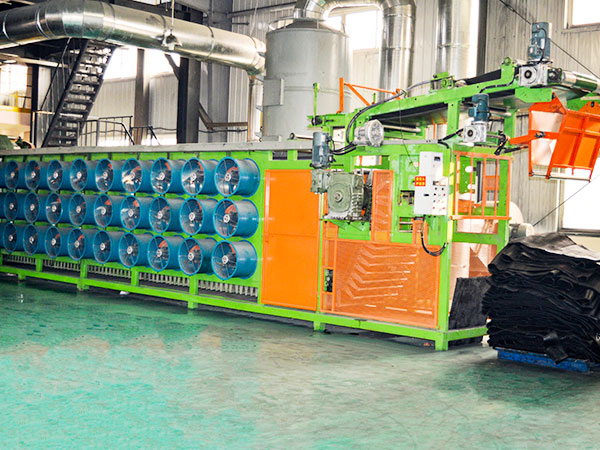

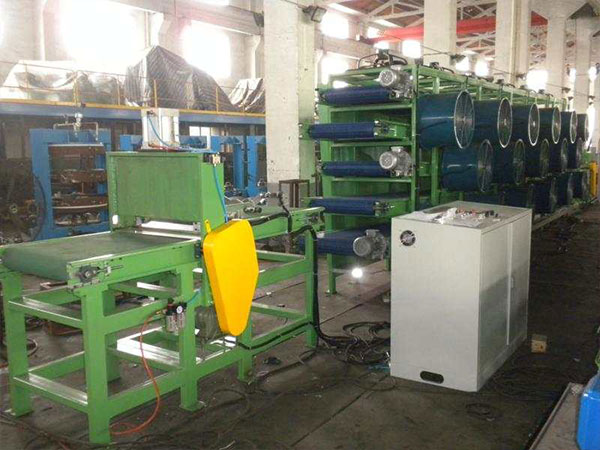

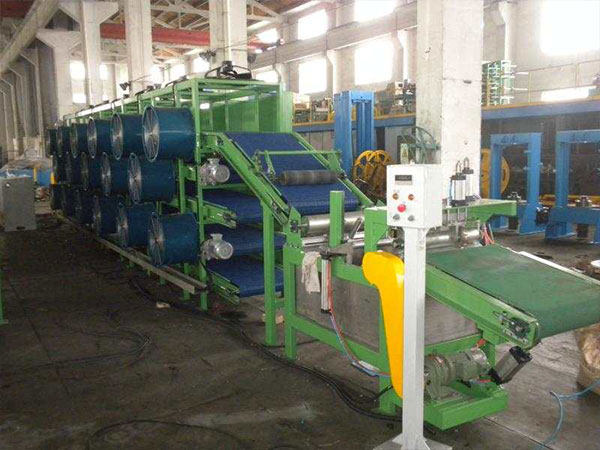

As a downstream auxiliary of internal mixer, it is mainly used for coating with release agent, cooling, drying and pack stacking, working with internal mixer, extruding sheeter, open mixing mill ,etc
1. The operation of coating with release agent, cooling, drying and pack stacking are performed in a signal machine and realize continuous production at high efficiency.
2. Cooling part is equipped with fans of low power, low noise and high wind pressure. It adopts packet start with good cooling effect.
3. Use of PLC and the frequency-control speed regulation make it easy to control the whole process .
4. There are floor type, overhead type, hang-up type, flat net type,etc to choose from according to customer’s requirement.
|
型號(hào) Model |
XPG-600 | XPG-800 | XPG-900 | |
|---|---|---|---|---|
|
制品寬度(mm) Max.product width |
600 | 800 | 900 | |
|
制品厚度(mm) Product thickness |
6-12 | 6-12 | 6-12 | |
|
冷卻后膠片高于室溫(℃) Rubber sheeting temperature above room temperature after cooling |
4 | 4 | 4 | |
|
接取線速度(m/min) Liner speed of pick-up conveyor |
3-35 | 4-40 | 5-50 | |
|
冷卻掛桿線速度(m/min) Liner speed of sheet hanging bar |
1-1.28 | 1-1.28 | 1-1.28 | |
|
膠片懸掛高度（mm） Max.hanging height of rubber sheet |
1500 | 1500 | 1500 | |
|
冷卻風(fēng)扇數(shù)量 Quantity of cooling fans |
6-14 | 14-52 | 24-64 | |
|
總功率(kw) Total power |
16 | 20-26 | 25-35 | |
|
外形尺寸(mm) Overall dimension |
長(L) | 12400 | 14850(-18600) | 18000(21750) |
| 寬(W) | 2140 | 2220 | 2300 | |
| 高(H) | 2820 | 2860 | 2980 | |
|
約重(t) Weight |
10 | 20 | 30 | |
