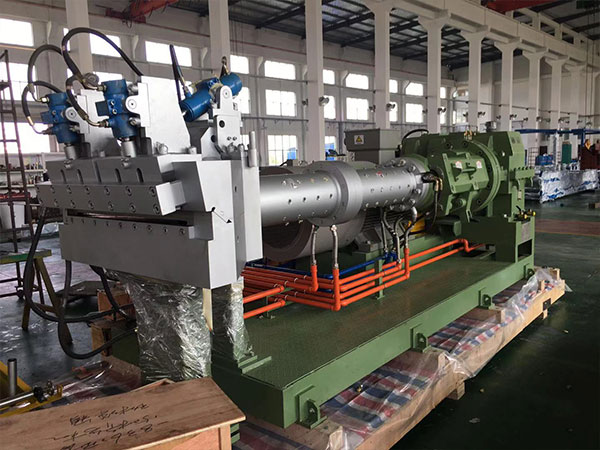

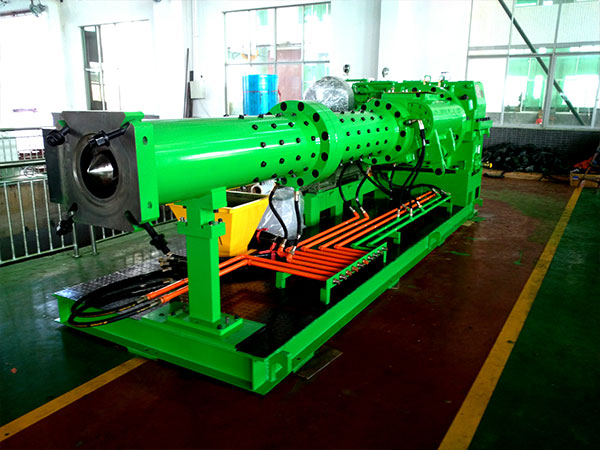

It is mainly used for extrusion of various rubber products and feeding rubber.
1.The barrel is composed of several zones. In the feeding zone, the spiral slots work with the side rolls to enhance feeding capability and in the plastication and extrusion zone ,different numbers of pins are fitted.
2.The screw has excellent geometric precision and is wear-resistant for being processed by nitrogenation treatment.
3.A hot water circulation device automatically control temperature in each zone.
4. It has the characteristics of good plasticizing effect, strong extruding ability, low temperature of rubber flow and smooth operation.
|
參數/型號 Model |
XJD-90×14D | XJD-120×14D | XJD-150×16D | XJD-200×12D | XJD-200×16D | XJD-250×12D | XJD-250×16D | |
|---|---|---|---|---|---|---|---|---|
|
螺桿直徑(mm) Screw diameter |
90 | 120 | 150 | 200 | 200 | 250 | 250 | |
|
螺桿長徑比L/D Screw L / D ratio |
14/1 | 14/1 | 16/1 | 12/1 | 16/1 | 12/1 | 16/1 | |
|
螺桿轉速 (r/min) Max.Screw Speed |
60 | 50 | 43 | 33 | 33 | 26 | 26 | |
|
喂料口尺寸(mm) Feeding hole size |
120×80 | 160×110 | 200×165 | 260×152 | 260×152 | 340×190 | 340×190 | |
|
銷釘行數 Row quantity of pin |
8 | 10 | 10 | 8 | 12 | 10 | 12 | |
|
毎行銷釘數 Pin quantity of each row |
6 | 6 | 8 | 10 | 10 | 12 | 12 | |
|
擠出電動機型號 Motor model |
Z4-180-41 | Z4-225-11 | Z4-250-11 | Z4-280-32 | Z4-315-12 | 24-315-42 | Z4-355-12 | |
|
主電機功率 (kw) Main motor Power |
55 | 110 | 220 | 315 | 355 | 400 | 450 | |
|
熱水循環區段 Hot water circulation section |
3 | 3 | 4 | 4 | 4 | 4 | 4 | |
|
熱水循環加熱總功率(kw) Total power of hot water circulating heating |
32 | 32 | 42 | 42 | 54 | 48 | 54 | |
|
生產能力 (kg/h) Max.Production capacity |
360 | 800 | 1500 | 2600 | 2600 | 3600 | 3600 | |
|
外形尺寸 (mm) Overall dimension |
長（L） | 2300 | 3250 | 3800 | 5030 | 5900 | 5400 | 6077 |
| 寬(W) | 1060 | 1250 | 1590 | 1950 | 1950 | 2400 | 2400 | |
| 高(H) | 1450 | 1650 | 1700 | 1850 | 1850 | 1920 | 1920 | |
|
重量(t) Weight |
3.2 | 5.7 | 7.2 | 15 | 15 | 18 | 21 | |
